ZHENGZHOU SONGYU HIGH TEMPERATURE TECHNOLOGY CO.,LTD william@songyuht.com 86-0371-6289-6370
製品詳細
起源の場所: 中国
ブランド名: SONGYU
モデル番号: フィンヒーター
支払及び船積みの言葉
最小注文数量: 10-100pcs
価格: 交渉可能
パッケージの詳細: 木製のケース
受渡し時間: 30営業日
支払条件: L/C、T/T、Western Union
供給の能力: 鄭州嵩宇高温技術有限公司
スレッド仕様: |
M10/12/16/20/24/27/30 |
シース材料（ステンレス鋼）：: |
201/304（フィン材料：アルミニウム/ステンレス鋼） |
力: |
カスタマイズ |
パイプの直径: |
カスタマイズ |
スレッド仕様: |
M10/12/16/20/24/27/30 |
シース材料（ステンレス鋼）：: |
201/304（フィン材料：アルミニウム/ステンレス鋼） |
力: |
カスタマイズ |
パイプの直径: |
カスタマイズ |

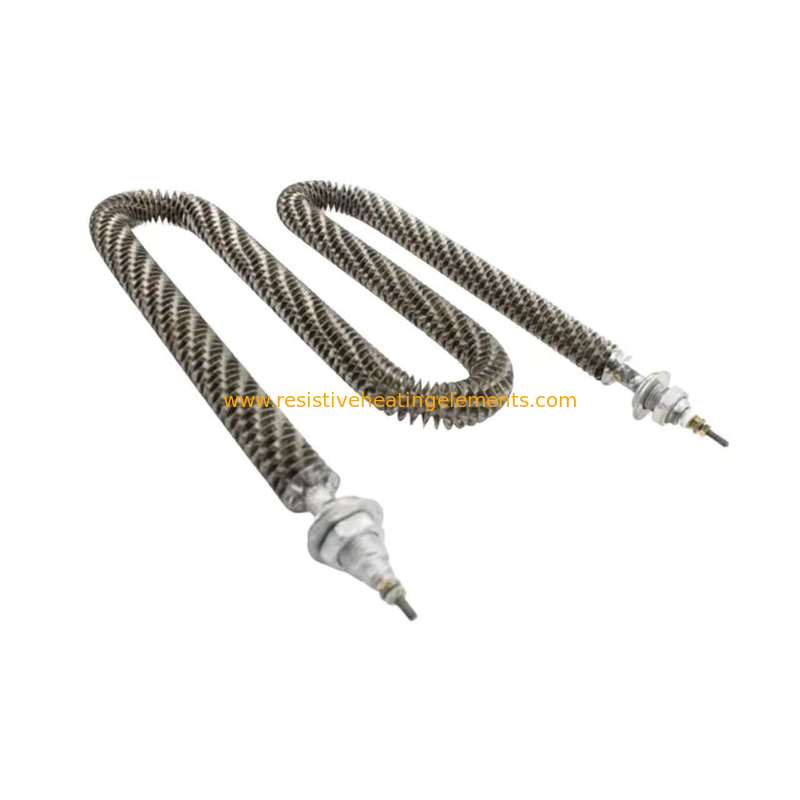

Fin heaters
Fin heaters are electric heating devices that increase the heat dissipation area and improve thermal efficiency by wrapping metal fins around the surface of ordinary heating elements. Their main features include: fast heating, high thermal efficiency, uniform heat dissipation, small size, low cost, and long life. They are commonly used for air heating in pipes and ducts and temperature maintenance in industrial cabinets.
Basic Principle:
Fin heaters operate by generating heat through an internal heating element (typically an electric heating alloy wire). This heat is then efficiently transferred to the flowing air or other medium via metal fins. The presence of the fins significantly increases the heat dissipation surface area and significantly improves heat exchange efficiency, allowing the element to heat up faster and more evenly at the same power consumption.
Key Features:
1. Efficient Heat Exchange
The fins significantly increase the heat dissipation area, thereby improving heat exchange efficiency and achieving rapid heating.
2. Fast Heat Rise and High Thermal Efficiency
At the same power output, finned heaters convert energy into heat more quickly.
3. High Surface Power Load
Due to the increased heat dissipation area, finned elements allow for higher surface power loads.
4. Compact Structure
The relatively short length of the finned elements reduces internal heat loss and enables a more compact heating unit.
5. Long Life
Efficient heat dissipation and a well-designed structure extend the heater's service life.
